# The effect of water stress in regulated deficit irrigation on soybean yield (Glycine max [L.] Merr.)

• Afandi
• Masateru Senge
• Kengo Ito
Article

## Abstract

The objective of this research was to investigate the effect of water stress in regulated deficit irrigation (RDI) on the yield of soybean growing on Ultisol soil. This research was conducted under plastic house on the experimental farm of Lampung Polytechnique from August to November 2004. The water stress treatments in regulated deficit irrigation were ET1 (1.0 × ETc), ET2 (0.8 × ETc), ET3 (0.6 × ETc), ET4 (0.4 × ETc) and ET5 (0.2 × ETc), arranged in a randomized block design with four replications. ETc means crop evapotranspiration under standard condition, which was well watered. For example, the ET2 (0.8 × ETc) treatment means that the amount of supplied water per a day is the same as the crop adjustment evapotranspiration (ETcadj) with the value 0.8 of water stress coefficient (K s). The RDI treatments were carried out just at vegetative phase and its treatments were stopped at the beginning of flowering phase, and afterwards the treatments were watered at 1.0 × ETc. The results showed that since week II, the soybean experienced stress throughout the growth period except ET2 treatment. ET2 treatment started to be stressed at week V and continued to be stressed until the harvest time. At the ET3 treatment, the critical water content (θc) of soybean was reached at week II, and the θc was 0.24 m3/m3 on the average. The RDI at vegetative period significantly affected the yield. The highest yield was ET1 (35.2 g/plant), followed by ET2 (31.0 g/plant), ET3 (18.1 g/plant), ET4 (7.6 g/plant), and ET5 (3.3 g/plant). The optimal water management of soybean with the highest yield efficiency was regulated deficit irrigation with water stress coefficient (K s) of 0.80 for vegetative phase.

## Keywords

Ultisol Water stress coefficient Yield efficiency Optimal water management

## Introduction

In the year 2004, national consumption of soybean in Indonesia was 2.02 million ton, but national production just achieved 0.71 million ton and the remaining 1.31 million ton of soybean was imported to meet 65% of national consumption (Marwoto et al. 2005). In particular, soybean production in Lampung province in 2003 was 3.97 × 103 ton from cropping area of 3.91 × 103 ha, or 1.02 ton/ha (Statistical Bureau 2003). The low national production of soybean was due to the low productivity and small cropping area. One of the reasons why the cropping area decreased was the limitation of water resources (Fagi and Tangkuman 1985).

However, efficient use of water resources depends on reducing water losses, which can be minimized through use of new irrigation techniques such as irrigation programs with deficient evapotranspiration. Demand for evapotranspiration (ET) can be reduced either through agronomic measures or use of deficit irrigation programs. The main approach in deficit irrigation practice is to increase water use efficiency by partially supplying the irrigation requirement and allowing water stress to planned plant during one or more periods of the growing season with the least impact on crop yield (Kirda et al. 1999).

The yield of soybean in the dry season with adequate irrigation was 1.97 ton/ha, but in the wet season was 0.61 ton/ha (Baharsyah et al. 1985). Usually, soybean is planted in paddy fields after the second harvesting of the paddy rice at the end of rainy season, through the dry season. Therefore, water availability becomes a limiting factor of production, so that the possibility of implementing deficit irrigation method is inevitable.

According to Allen et al. (1998), the evapotranspiration under water stress condition when soil water content falls below the critical water content is called as the adjustment evapotranspiration (ETcadj), which can be calculated by the following equation.
$${\text{ET}}_{{{\text{cadj}}}} {\text{ }} = {\text{ }}K_{{\text{s}}} {\text{ ET}}_{{\text{c}}}$$
(1)
$${\text{ET}}_{{\text{c}}} {\text{ }} = {\text{ }}K_{{\text{c}}} {\text{ ET}}_{{\text{o}}}$$
(2)
where ETc is the crop evapotranspiration under standard condition, which was well watered (mm/day), ETo is evapotranspiration of reference crop (mm/day), K c is crop coefficient (no dimension), K s is water stress coefficient (no dimension).

Value of K s is important for estimating ETcadj, so that the deficit irrigation scheduling can be made. K s describes the effect of water stress on crop transpiration (Allen et al. 1998).

According to Doorenbos and Kassam (1979), the K c of soybean during the initial, the development, the mid season, late season and harvest stage was 0.35, 0.75, 1.075, 0.75, and 0.45, respectively. The average K c values of the whole growing period were between 0.7 and 0.8, or 0.75.

According to Doorenboss and Kassam (1979), in order to quantify the effect of water stress, it is necessary to derive the relationship between relative yield decrease and relative evapotranspiration deficit given by the following equation.
$$1 - Y_{{\text{a}}} /Y_{{\text{m}}} {\text{ }} = {\text{ }}K_{{\text{y}}} {\text{ }}(1 - {\text{ET}}_{{\text{a}}} /{\text{ET}}_{{\text{m}}} )$$
(3)
where 1 − Y a/Y m: relative yield decrease, Y a: actual yield, Y m: maximum yield (under no water stress condition), 1 − ETa/ETm: relative evapotranspiration decrease, K y: yield response factor, ETa: actual evapotranspiration, and ETm: maximum evapotranspiration (under no water stress condition).

The effect of water stress, especially at vegetative phase of groundnut has been reported by Nautiyal et al. (2000). They stated that water deficit stress during the vegetative phase, can increase water use efficiency (WUE) significantly. Bustomi Rosadi et al. (2005), according to pot experiment in their greenhouse, stated that the soybean plant started to experience water stress at the fourth week from planting, if soil water was maintained at 40–60% available water deficit for the whole growing period. It meant that available water deficit strongly affected the soybean growth from the end of vegetative phase (fourth week) to the generative phase and the available water deficit gave no significant effect to the soybean growth at the vegetative phase except at the fourth week. So there is a possibility to apply the deficit irrigation at the vegetative phase to achieve an optimal yield. But, there remains question how to apply this result on the field, actually. So there is a need to modify the treatments in order to clear the relation between ET and available soil water depletion. The modification treatments in deficit irrigation research are known as the regulated deficit evapotranspiration (RDE) or regulated deficit irrigation (RDI). “Regulated” means that the deficit irrigation was applied just at certain growth period, e.g., vegetative phase in this research.

Based on the explanation above, it is necessary to find an efficient and effective use and management of water so that the soybean cropping area can be increased; therefore it is important to know the K s value in RDI condition. So, if these values were known and full irrigation was restricted by the availability of water, the deficit irrigation can be applied, which allows maintaining soil water content below full irrigation at certain growth period, to achieve an optimal yield. The objective of this research was to investigate the effect of water stress in RDI at vegetative phase on the water use efficiency of soybean (var. Willis) in the frame of optimum water management.

## Materials and methods

This research was conducted under plastic house in an experimental farm of Lampung Polytechnique from August to November 2004. Soybean cultivar used was Willis. The soil was sandy loam in texture and classified as Ultisol. Soil water content at field capacity (34.7 kPa) was 0.352 m3/m3 and wilting point (1,585 kPa) was 0.223 m3/m3. Therefore, total available water (TAW), that is the total soil water content between field capacity and permanent wilting point, was 0.128 m3/m3. The elevation of site was 43 m above sea level. The average air temperature was 26.3°C and the relative humidity was 60.8%.

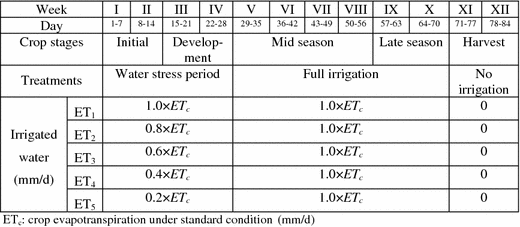

The water stress treatments in RDI imposed were: ET1 (1.0 × ETc), ET2 (0.8 × ETc), ET3 (0.6 × ETc), ET4 (0.4 × ETc) and ET5 (0.2 × ETc) arranged in a randomized complete block design with four replications. The area of each treatment plot was 1 × 1.5 m2, and the distance between plots was 1 m. The RDI treatments were given just at vegetative phase (1 month after planting) and its treatments were stopped at the beginning of flowering phase, and afterwards the treatments were watered at 1.0 × ETc (see Fig. 1). On the day before planting, the soil was saturated with water, and irrigation was given at two days interval by handycan. For example, the ET2 (0.8 × ETc) treatment means that the amount of supplied water per day is the same as the crop adjustment evapotranspiration (ETcadj) with the value 0.8 of water stress coefficient (K s). The amount of each irrigation was the same as the 2 days accumulated ETcadj according to the treatments. ETcadj was calculated by formula (1), and ET o was measured by class A pan with pan coefficient (K pan) being 0.8 and crop coefficient (K c) of soybean being 0.75 (the average value for the whole period). The values of K pan and K c were referred from Doorenboos and Kassam (1979). The emerged seedlings were pruned to maintain only two healthy seedlings per seedling hole. Fertilizer application of urea at 50 kg/ha, triple super phosphate at 75 and 75 kg/ha muriate of potash were applied. The soybean plants were sprayed with insecticide to protect them from insect attack at least twice a month. The growth period of soybean plant was 85 days, and 2 weeks before harvesting, the irrigation was stopped.

The soil water content was monitored by porous blocks placed at 15 cm depth in each plot. These porous blocks were made by two circles of brass plate; the diameter of small one was 1 cm and the big one was 2 cm, and both the brass plates had extension wires to make easier in measuring the resistance by multitester. All brass plate were in side of gypsum cylinder with 3 cm diameter and 4.5 cm high. Before using them to measure the soil water content, the porous blocks had been calibrated in the laboratory by making the relationship between the soil water resistance and the soil water content. The soil water resistance was measured by multitester daily, and using the relationship as mentioned above the data was converted to the soil water content.

Agronomic variables evaluated in this research were plant height, leaf, flower and pod numbers, wet weight of total biomass and yield, WUE, and yield efficiency (YE). WUE (g/mm) was calculated as the ratio of total biomass (g/plant) to the total irrigation (TI), and YE (g/mm) was calculated as the ratio of yield (g/plant) to TI (mm). Statistical analysis using F-test at 5% significant level, followed by LSD (Least Significant Different) test at the same level was carried out.

## Results and discussion

### Plant growth

The effects of water deficit on plant growth indicators are shown in Table 1. It can be observed from this table that based on plant height and leaf number at week II, the soybean experienced stress throughout the growth period except ET2 treatments. ET2 treatment started to be stressed at week V and continued to be stressed until week VI, which was shown by the pod number of ET2 treatment. This stress condition was continued until the end of growth, which was shown by the total biomass and yield at ET2, which were significantly different compared to ET1. The plant height at ET1 (43.9 cm) was the highest at week VII, and significantly different compared to ET3 (37.2 cm), ET4 (28.5 cm), and ET5 (17.1 cm). Similarly the leaf number at ET1 (61.0) was the greatest at week VII, and significantly different compared to ET3 (48.0), ET4 (42.5), and ET5 (15.1).
Table 1

The effect of water stress at vegetative phase on the plant height, and leaf number

Water stress level

Week

I

II

III

IV

V

VI

VII

Plant height (cm)

ET1

5.1 a

8.8 a

17.2 a

21.9 a

30.1 a

35.6 a

43.9 a

ET2

5.0 a

8.4 ab

15.1 ab

19.2 ab

27.6 b

32.6 b

41.8 a

ET3

5.0 a

7.4 bc

13.1 b

17.4 b

22.5 c

26.9 c

37.2 b

ET4

5.0 a

7.6 c

10.2 c

12.4 c

16.3 d

20.5 d

28.5 c

ET5

5.0 a

5.6 d

7.8 d

8.5 d

9.7 e

13.1 e

17.1 d

Leaf number (pieces)

ET1

4.0 a

8.50 a

11.9 a

17.8 a

30.3 a

50.9 a

61.0 a

ET2

4.0 a

8.58 a

10.8 ab

16.4 ab

25.4 b

44.8 b

58.5 a

ET3

4.0 a

8.04 b

10.5 bc

16.2 b

22.5 b

38.6 c

48.0 b

ET4

4.0 a

6.91 c

9.2 c

12.0 c

16.8 c

32.2 d

42.5 c

ET5

4.0 a

4.75 d

4.9 d

5.7 d

8.3 d

11.4 e

15.1 d

The values of plant height and leaf number were measured at the last day of each week

Numbers followed by the same letters vertically were not significantly different using LSD-test at 5% significant level

### Yield

Table 2 provides information that the flowering and pod formation were significantly affected under ET2, ET3, ET4, and ET5 treatments. The flower numbers at ET1 (10.46 pieces) was the highest at week V, and significantly different compared to ET3 (8.83 pieces), ET4 (4.75 pieces), and ET5 (1.13 pieces). The flower numbers at ET1 (13.4 pieces) was the greatest at week VI, and significantly different compared to ET2 (11.18 pieces), ET3 (6,18 pieces), ET4 (5.21 pieces), and ET5 (1.31 pieces). The pod numbers at ET1 (15.96) was the greatest at week VI, and significantly different compared to ET2 (12.00), ET3 (8.03), ET4 (2.58), and ET5 (0.00). The pod numbers at ET1 (21.39) was the highest at week VII, and significantly different compared to ET2 (17.88), ET3 (18.16), ET4 (7.26), and ET5 (1.22). Furthermore, in Table 3 it can be seen that the total biomass and yield were also significantly affected under ET2, ET3, ET4, and ET5 compared to ET1. The total biomass at ET1 (51.5 g/plant) was the highest at week VII, and significantly different compared to ET2 (44.5 g/plant), ET3 (33.3 g/plant), ET4 (14.3 g/plant), and ET5 (8.7 g/plant). The yield at ET1 (35.2 g/plant) was the highest at week VII, and significantly different compared to ET2 (31.0 g/plant), ET3 (17.1 g/plant), ET4 (7.6 g/plant), and ET5 (3.3 g/plant).
Table 2

The effect of water stress at vegetative phase on the flower and pod number

Water stress level

Flower number (pieces)

Pod number (pieces)

Week V

Week VI

Week VI

Week VII

ET1

10.46 a

13.40 a

15.96 a

21.39 a

ET2

9.83 ab

11.18 b

12.00 b

17.88 b

ET3

8.83 b

6.18 c

8.03 c

18.16 b

ET4

4.75 c

5.21 c

2.58 d

7.26 c

ET5

1.13 d

1.31 d

0.00 e

1.22 d

The values of flower and pod number were measured at the last day of each week

Numbers followed by the same letters vertically were not significantly different using LSD-test at 5% significant level

Table 3

The effect of water stress at vegetative phase on the biomass, yield, TI, WUE, and YE

Water stress level

Wet biomass (g/plant)

Yield (g/plant)

TI (mm)

WUE (g/mm)

YE (g/mm)

ET1

51.5 a

35.2 a

220.0

0.187 a

0.16 a

ET2

44.5 b

31.0 b

200.4

0.181 a

0.15 a

ET3

33.3 c

18.1 c

181.0

0.132 b

0.10 b

ET4

14.3 d

7.6 d

161.5

0.058 c

0.05 c

ET5

8.7 e

3.3 e

142.1

0.037 d

0.02 d

TI total irrigation, WUE water use efficiency, YE yield efficiency

Numbers followed by the same letters vertically were not significantly different using LSD-test at 5% significant level

Based on the explanation above, it is clear to understand that the soybean plant experienced initial stress from week V at ET2, and from week II at ET3 to ET5, and remained in the stress condition until harvest time.

### Water use and yield efficiencies

Table 3 shows that the effects of RDI at vegetative phase on the WUE and YE were significantly different. RDI treatments of ET3–ET5 showed significant difference compared to ET1 (as a control).

The value of TI in Table 3 was assumed to be same with the total irrigation for the whole growing period (see Table 4). It can be seen from Table 3 that even though there is no significant difference between ET2 and ET1 treatments in WUE and YE, there is significant difference in yield per plant. So the ET1 treatment is the greatest in yield per plant, WUE and YE.
Table 4

The weekly irrigation (mm)

Water stress level

Week

I

II

III

IV

V

VI

VII

VIII

IX

X

Total

ET1

22.7

26.7

25.4

22.4

19.6

17.8

15.3

18.2

25.4

26.3

219.8

ET2

18.4

21.4

20.4

17.9

19.6

17.8

15.3

18.2

25.4

26.3

200.7

ET3

13.6

16.0

15.3

13.4

19.6

17.8

15.3

18.2

25.4

26.3

180.9

ET4

9.1

10.7

10.2

9.0

19.6

17.8

15.3

18.2

25.4

26.3

161.6

ET5

4.5

5.3

5.1

4.5

19.6

17.8

15.3

18.2

25.4

26.3

142.0

### Daily soil moisture contents

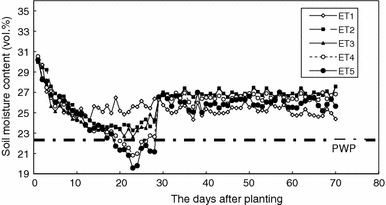

The daily soil moisture contents measured by porous block were shown in Fig. 2. It can be seen that the soil moisture content of all treatments decreased at the first week, and after that, since week II, the change of soil moisture content depended on each treatment. It is easy to understand that at the first week the soil moisture of all treatments decreased because on the day before planting, the soil was saturated and the gravitational water in soil continued to percolate deeper for a week. In week II, it can be seen that the soil moisture contents of ET3, ET4, and ET5 were lower than ET1, but that of ET2 was quite closed to ET1 treatment. Based on growth indicators (plant height and leaf number), it is known that soybean plants started to be stressed at week II at ET3, ET4, and ET5 treatments. It means that the critical water content (θc) of soybean at week II was reached at the ET3 treatment, and the θc was 0.24 m3/m3 on the average. The ET4, and ET5 still were continuing to be stressed at week III and IV, and soil water contents of those treatments were under the permanent wilting point.

Figure 2 shows that the soil moisture content of ET1, which is a full irrigation treatment (1.0 × ETc), was relatively constant since week II until the end of irrigation period at 0.243–0.266 or 0.253 m3/m3 in average. It means that the actual evapotranspiration of soybean at ET1 was balanced with the amount of irrigated water estimated using the value of K c = 0.75.

Figure 2 also shows that after stopping the treatments (week V), the soil moisture content of ET2, ET3, ET4, and ET5 treatments hovered constant values, which were more than that of ET1 treatment. It means that the stress condition of the soybean plant at ET2, ET3, ET4, and ET5 treatments still continued until the end of irrigation period, which indicates that the evapotranspiration rates of those treatments were less than that of ET1.

### Yield response to water stress

Using Eq. 3, the K y values of ET2, ET3, ET4, and ET5 shown in Table 5 are 0.59, 1.21, 1.30, and 1.13, respectively, with an average value of 1.05. The value of evapotranspiration at ET1 was assumed as maximum evapotranspiration (ETm), and the evapotranspiration at ET2–ET5 were assumed as a actual evapotraspiration (ETa). The relationship between relative yield decrease (1 − Y a/Y m) and relative evapotranspiration deficit (1 − ETa/ETm) was not linear as shown in Fig. 3. The result of this experiment was almost same with that of pot experiment by Bustomi Rosadi et al. (2005).
Table 5

The yield response factor (K y) of soybean

Water stress level

Yield (g/plant)

ETa (mm)

1 − Y a/Y m

1 − ET a /ETm

K y

ET1

35.23

97.2

0.00

0.00

0.00

ET2

31.04

78.1

0.118

0.20

0.59

ET3

18.10

58.3

0.486

0.40

1.21

ET4

7.55

39.0

0.786

0.60

1.30

ET5

3.29

19.4

0.907

0.80

1.13

Average

1.05

Y a actual yield, Y m maximum yield, ETa actual evapotranspiration at vegetative phase, ETm maximum evapotranspiration of ET a, K y yield response factor

According to Doorenboss and Kassam (1979), the K y values are derived on assumption that the relationship between relative yield decrease and relative evapotranspiration deficit is linear and is valid for water deficits of up to about 50% or 1 − ETa/ETm = 0.5, in which the K y of soybean for the vegetative period of water deficit is 0.59. According to Doorenboss and Kassam (1979), the K y values of soybean at early vegetative was 0.45. The differentiation between those K y values was due to the different period in applying the RDI. In this research RDI was applied at the whole vegetative phase, whether Doorenboss and Kassam at the early vegetative phase.

### Optimum deficit irrigation

According to the result in Table 5, the K y value of ET2 treatment was 0.59, which meant that ET2 treatment responded to deficit irrigation because of K y < 1. Bustomi Rosadi et al. (2005) also showed that the optimum yield of soybean plant (var. Willis) with the highest efficiency was reached by deficit irrigation that maintained the soil water condition at the level of 40–60% of available water deficit with K y = 0.611, and could conserve 10.1% of water. The K y of the optimum yield of this laboratory experiment was almost same with the K y of ET2 treatment, which was 0.59. However, the effect of the treatment to the WUE and YE at ET2 was not significantly different compared to ET1. So, there remains question if the calculation of YE at ET2 was right. Principally, if ET2 treatment responded to the deficit irrigation, the YE of ET2 must be higher than ET1.

Based on Fig. 2, it was found that the soil water content at ET2 was higher than ET1 treatment. It was happened because the soybean plant really continued to be in stress condition after week V (see Tables 1, 2). So, if the plant was irrigated by the same volume with ET1, some water could not be really used by plant and may be lost as gravitational water or still remained in the soil as shown in Fig. 2, and the value 200.4 mm at ET2 in Table 3 is supposed to be more than the real crop water requirement. Those same phenomena were also happened at ET3, ET4, and ET5 treatments.

So, if the ET2 treatment was irrigated by the amount of water such as actual evapotranspiration since week V, there was a possibility that the total irrigated water could be decreased and the value of YE could become bigger than the results as shown in Table 3. It is important for completing optimal water management in RDI to estimate the actual evapotranspiration after vegetative phase without yield decrease.

However, this water management cannot be applied to the other fields with different soil and meteorological conditions, which could affect strongly soil moisture consumption by soybean plant. This research could propose how to determine the water stress coefficient in regulated deficit irrigation with the highest yield efficiency of soybean on the field.

## Conclusion

1. 1.

At week II, the soybean experienced stress throughout the growth period except ET2 treatments. ET2 treatment started to be stressed at week V and continued to be stressed until harvest time.

2. 2.

The critical water content (θc) of soybean at week II was reached at the ET3 treatment, and the θc was 0.24 m3/m3 on the average.

3. 3.

The water stress in RDI at vegetative period significantly affect the yield. The highest yield was ET1 (35.2 g/plant), follows by ET2 (31.0 g/plant), ET3 (18.1 g/plant), ET4 (7.6 g/plant), and ET5 (3.3 g/plant).

4. 4.

The optimal water management of soybean with the highest yield efficiency was regulated deficit irrigation with water stress coefficient (K s) of 0.80 for the vegetative phase. Furthermore, there is the possibility that the amount of total irrigated water could be decreased, if the actual evapotranspiration of ET2 treatment after the vegetative phase could be estimated without decrease compared to full irrigation.

## Notes

### Acknowledgment

Thanks are due to Omi Istiawati for her help in conducting this experiment.

## References

1. Allen RG, Pereira LS, Raes D, Smith M (1998) Crop evapotranspiration, guidelines for computing crop water requirements. Irrigation and drainage paper No. 56, FAO, Rome, Italy: p 301Google Scholar
2. Baharsyah Y, Suardi JD, Las I (1985) The relation between climate and soybean growth. Bogor University and the research institute for food crops. The research center and development of food crops, Bogor, pp 87–101Google Scholar
3. Bustomi Rosadi RA, Afandi, Senge M, Ito K, Adomako JT (2005) Critical water content and water stress coefficient of soybean (Glycine Max [L.] Merr.) under deficit irrigation. J Int Soc Paddy Water Environ Eng 3(4):219–223Google Scholar
4. Doorenbos J, Kassam AH (1979) Yield response to water. FAO, Roma, pp 1–57Google Scholar
5. Fagi AM, Tangkuman F (1985) Water management for soybean. Food crops research institute, Sukamandi, pp 135–138Google Scholar
6. Kirda C, Moutonnet P, Hera C, Nielsen DR (1999) Crop yield response to deficit irrigation. Kluwer, Dordrecht, The Netherlands, pp 21–38Google Scholar
7. Marwoto D, Swastika KS, Simatupang P (2005) Soybean development and research policy in Indonesia, Workshop of soybean development on sub-optimal land. Balitkabi Malang, July 26Google Scholar
8. Nautiyal PC, Yoshi YC, Dayal D (2000) Deficit irrigation practices. Water reports No. 22, FAO, Rome, Italy. http://www.fao.org/docrep/004/Y3655E/y3655e00.htm
9. The Indonesian central bureau of statistics (2003) Statistics Indonesia, JakartaGoogle Scholar
